Complete Bolt Kit for Eagle Chassis as used by Sammy Swindell
Please allow 2-4 weeks for delivery.
Kit Specs

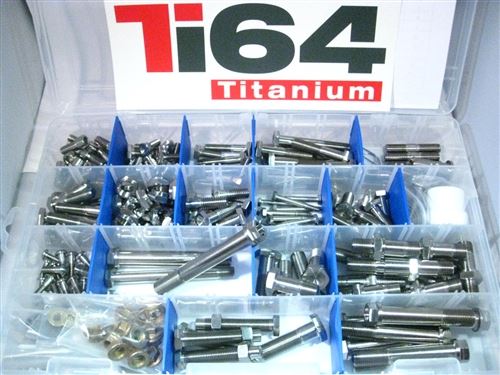

Sammy ran an Eagle Chassis for the 2013 WoO’s season and called on Ti64 to build the most complete, lightest, exact fitting kit. This kit has 196 Ti pieces including custom ½” Ti locknuts. The kit is available from Eagle Motorsports and also featured in Speedway Motors Swindell Series product line.
| Item | Application | Part Description | Qty | Ti64 Part # |
| 1 | Lower Front Shock ONS | 1/2-20 ONS 7/8″ Thread | 2 | 5114 |
| 2 | Upper Front Shock ONS | 1/2-20 ONS 7/8″ Thread | 2 | 5114 |
| 3 | Lower RR Shock ONS | 1/2-20×3 ONS | 1 | 5110 |
| 4 | Lower LR Shock ONS | 1/2-20×2.625 hex | 1 | 5111 |
| 5 | Steering Wheel | 1/4-28x.5 hex | 3 | 1277 |
| 6 | Steering Mount Clamp | 3/8-24×1 hex | 2 | 1309 |
| 7 | Steering Top Mount | 1/4-28×1.75 hex | 2 | 1282 |
| 8 | Lee Power Steering | 5/16-18x.75 socket | 12 | 3857 |
| 9 | Pittman Arm Pinch | 3/8-24×1.875 hex | 1 | 6129 |
| 10 | Pittman Arm ONS | 1/2-20×2 ONS | 1 | 6160 |
| 11 | Lower Steering Drag Link ONS | 1/2-20×2 ONS | 3 | 6160 |
| 12 | RF Steering Arm | 1/2-20×1.5 hex | 2 | 1345 |
| 13 | LF Steering Arm | 1/2-20×2 countersunk | 2 | 6029 |
| 14 | Front Axle Radius Rods | 1/2-20×1.25 hex | 3 | 6424 |
| 15 | Radius Rods Rear Top Shock | 1/2-20×2.625 hex flange | 7 | 6248 |
| 16 | Birdcage Radius Rod | 1/2-20×3.5 hex | 2 | 5006 |
| 17 | Jacobs Ladder Straps | 3/8-24×1.75 hex | 2 | 1312 |
| 18 | Jacobs Ladder Frame | 3/8-24×3.75 hex | 2 | 3719 |
| 19 | Jacobs Ladder Pin | 1/2×1.3 clevis pin | 1 | 5104 |
| 20 | Torsion Arm Pinch | 3/8-24×1.75 hex | 4 | 6069 |
| 21 | Torsion Stop Pinch Rear | 3/8-24×1.5 hex | 2 | 6172 |
| 22 | Torsion Stop Pinch Front | 3/8-24×1.875 hex | 2 | 6129 |
| 23 | Torsion Stop Adjuster | 7/16-20×2 custom | 4 | 5100 |
| 24 | Front Motor Plate | 3/8-24×1 hex | 2 | 1309 |
| 25 | Rear Motor Bottom | 3/8-16×1.25 hex | 4 | 1107 |
| 26 | Rear Motor Top | 3/8-16×2.75 hex | 2 | 3689 |
| 27 | Rear Motor Plate to Frame | 3/8-24×2.375 hex | 4 | 1314 |
| 28 | Torque Ball Housing | 3/8-16×1 hex | 6 | 1106 |
| 29 | Torque Tube Stud | 3/8×2 custom | 6 | 6042 |
| 30 | Bell Crank | 1/4-28×1.5 hex | 1 | 1281 |
| 31 | Brake Pedal Pivot | 3/8-24×1.812 hex | 1 | 6129 |
| 32 | Brake Pedal Top | 5/16-24×2.25 hex | 1 | 3710 |
| 33 | Master Cylinder | 5/16-24×2 Button | 2 | 6174 |
| 34 | RR and Inboard Rotor | 1/4-28x.75 Button | 12 | 5202 |
| 35 | Wing Cylinder to Frame | 3/8-24×1.125 hex | 1 | 1532 |
| 36 | Wing Cylinder to Tree | 3/8-24×1.625 hex | 1 | 6086 |
| 37 | Rear Wing Tree | 3/8-24x.75 hex | 4 | 1308 |
| 38 | Front Wing | 1/4-28x.75 hex | 4 | 1278 |
| 39 | Front Wing Rear to Frame | 5/16-24x.5 hex | 2 | 1292 |
| 40 | Front and Top Wing Post | 5/16-24×1.5 hex | 4 | 1296 |
| 41 | Floor Pan | 10-32x.5 Button | 8 | 6163 |
| 42 | Floor Pan to Motor Plate | 10-32x.75 hex | 4 | 6175 |
| 43 | Fuel Tank Top Plate | 1/4-28×3/4 Button | 12 | 5202 |
| 44 | Fuel Tank Mount | 5/16-18x.75 socket | 4 | 3857 |
| 45 | Fuel Pump Clamp,Shifter, Wing Valve | 1/4-20x.5 Button | 7 | 6080 |
| 46 | Lee Steering Pump Adapter | 1/4-20x.625 socket | 1 | 6033 |
| 47 | Panhard Clamp | 1/2-20×1.75 hex | 1 | 1346 |
| 48 | Bumper and Nerf | #10-32 x 1.5” hex | 12 | 6088 |
| 49 | locknut | #10-32 jet | 24 | 1541 |
| 50 | locknut | 1/4″-28 jet | 19 | 1542 |
| 51 | locknut | 5/16″-24 jet | 9 | 1543 |
| 52 | locknut | 3/8″-24 jet | 16 | 1544 |
| 53 | Ti locknut | 1/2″-20 Ti nylock | 25 | 5127 |
| 54 | Washers | 1/4″ thin washer | 8 | 6005 |
| 55 | Washers | 5/16″ thin washer | 8 | 6004 |
| 56 | Washers | 3/8″ thin washer | 26 | 6002 |
| 57 | Washers | 1/2″ thin washer | 5 | 6000 |
| 58 | Rue Clip | 1/2″ | 1 | 5435 |
| 59 | Jam Nut | 7/16″-20 Ti64 Jam Nut | 4 | 6182 |
| 60 | Moly Paste | Ti-Treat Moly Paste | 1 | 4624 |
| Weight | 3.5 kg |
|---|
